Pedals Support Enhanced

Fr 90

Pedals Support Enhanced kit. Change your pedals position in any direction and angle.

Available on backorder

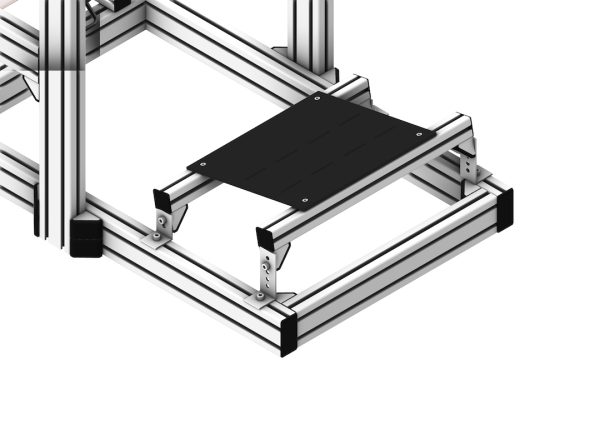

With this Pedals Support Enhanced kit, you can change your pedals position with your preferred angle.

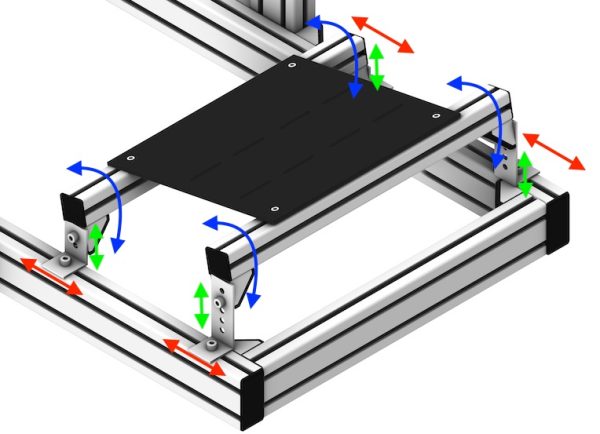

Total freedom to move forward/backward (red arrows), up/down (green arrows) and to change pedals angle (blue arrows), see picture.

Kit included:

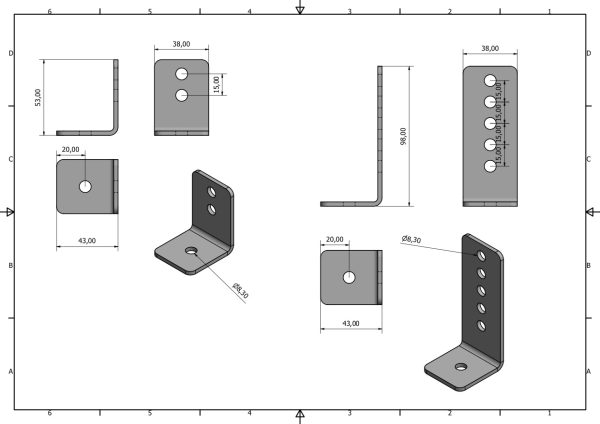

  1. 2 x Height adjustment Metal connector – L Size, Higher: 98 mm
  2. 2 x Height adjustment Metal connector – L Size, Lower: 53 mm
  3. 2 Aluminium profile 40x40x500, silver
  4. 4 Bracket angular
  5. 8 x T-nut guided block M8
  6. 8 x Screws DIN 912 M8x16
  7. 4 x Screws DIN 912 M8x25 – For High L Connector
  8. 8 x Washer DIN 9021

These are further additional optionals:

  1. Metal BASE Plate 5mm thickness. Compatible with DCSimracing Pedals, click here for further details.
  2. Fast release locking lever Metal screw, AS REPLACEMENT for M8 screws, to speed-up forward/backward movements, click here for further details.
  3. Enhanced side supports, AS REPLACEMENT of L Size Height adjustment (A+B), click here for further details.
  4. Slider under the base, for forward/backward movements, exactly as the seat movements, click here for further details.


You can buy this kit together with your cockpit, or for your existing one.

Additional information

Weight 2 kg
Dimensions 550 × 80 × 40 cm
