SILVER.ELITE

Description

Cockpit Aluminium, ELITE version, very strong structure for hard racing in the SIMRACING world.

All base profiles are 80×40 sized, not only the bordes, also inside structure are 80×40.

With Aluminum profile you will have great stability and totally free setup changes, to fit perfectly your tall and your legs/arms distances; don’t forget you can change dimensions, when you will want, also in next years.

Included:

1. Full Base Frame, 40×80 Aluminium STRONG Profile (please pay attention, some competitors use 40×40 Profiles), also for inside profile,
2. All Screws, 16 x Brackets angular, Black Caps, T-nut guided blocks
3. Allen Key
4. Standard Pedal Support
5. ELITE Wheel Base Support with Metal Black Baseplate (details here), compatible with:
   1. Fanatec CSL
   2. Fanatec CSW
6. Base for Seat Support

Extra accessories not included, to be added according to your needs:

• Racing Seats
• Wheel Set
• Pedal set
• ELITE Seat brackets & Elite Seat slider
• ELITE Shifter and Handbrake support
• Shifter and Handbrake mounting plates
• Adjustable feet

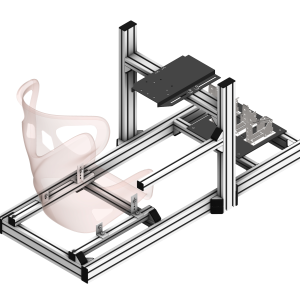

Standard cockpit frame details

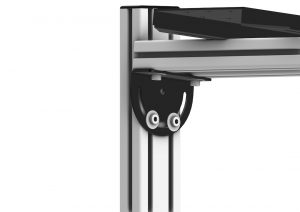

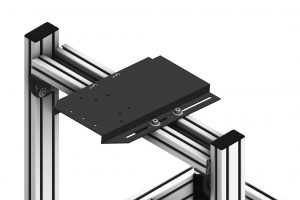

Wheel ELITE Support Mount, INCLUDED.

Elite Mount, easy to change wheel base angle, with strong 2 x 580x40x80 ALU profile.

Pedal Standard Support Mount, INCLUDED.

Fixed Mount, with strong 40x40x500 all profile.

You can choose to upgrade it to Enhanced Pedal Support with inclinations, details here.

Baseplate standard supports – Baseplate OPTIONAL 1 x 40×40 profile Inside, 3 x 80×40 profiles (borders).	Free to change your Pedals angle.
Ideal for Fanatec and any kind of pedals with it own Baseplate	Ideal also for Pedals like DCSimracing, Heusinkveld and similar, also without baseplate

Seat Base Support, INCLUDED.

Included 1 x 40×80 Profile and 2 x 40×40 Profile, screws and all mounting accessories.

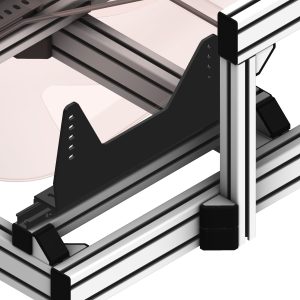

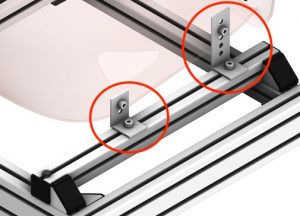

Included Standard base supports, if you already have seat with bracket/sliders	Optional Standard Seat Supports, with or without sliders	Optional Side Brackets with/without Slider

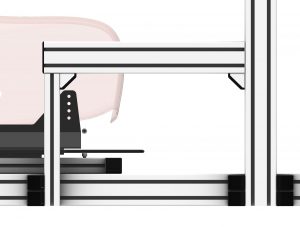

Elite Shifter and Hand Brake Support, optional.

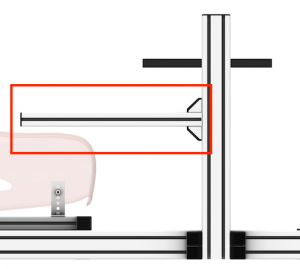

OPTIONAL Elite Shifter and Hand Brake Support	OPTIONAL Smart Shifter and Hand Brake Support
